Features of OSA. Speed of OCM.



Proximion has created the market's most advanced optical layer monitoring product series – WISTOM. It combines the features of an optical spectrum analyzer and a fast optical channel monitor, aimed at long haul and metropolitan DWDM network supervision.




Keep Track of Your Optical Layer with WISTOM


Measure key parameters for each channel in a DWDM network


Detect disturbances anywhere in the wavelength band


Perform long-term data acquisition and trend analysis


Supervise network quality through key values and customized reports


Prevent and localize faults with remote connections


Predict failures before they affect network performance


Detect intermittent disturbances and power dips by fast and accurate monitoring




validating quality of service with wistom


Validating Quality of Service

As system vendors continuously strive to perfect optical communication equipment, network operator requirements for monitoring and controlling system performance grow. In recent years, numerous applications have emerged where Optical Layer Monitoring is crucial. WISTOM secures your optical communication layer by validating Quality of Service (QoS).



Not Like Other Solutions

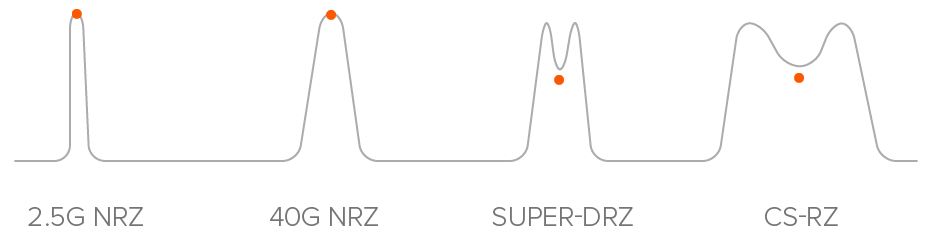

detailed optical spectrum analysis with proximions wistom

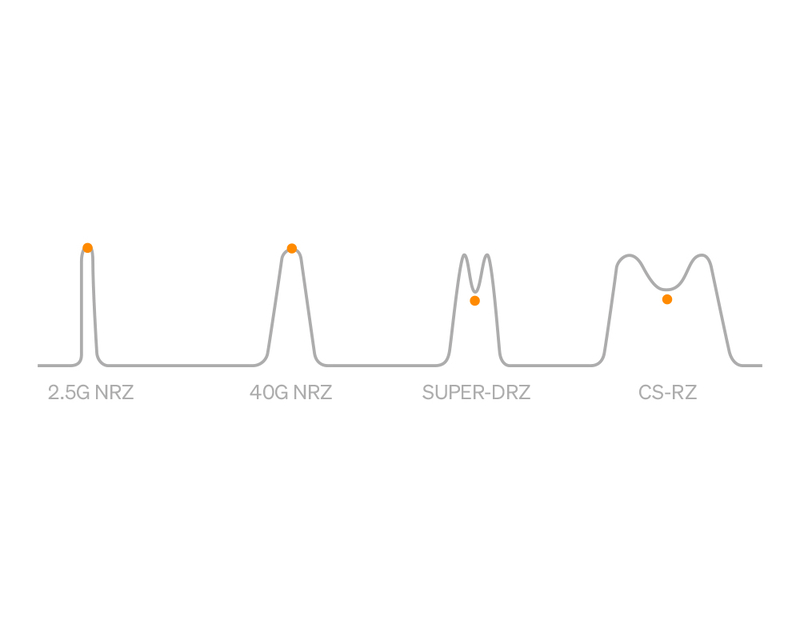

  • Detailed spectrum analysis, not just coarse power measurements

  • Measures any modulation format, channel spacing and bit rate

  • Detects disturbances in the millisecond range

  • Software based analysis – simple configuration and customization


Technical Specification at a Glance

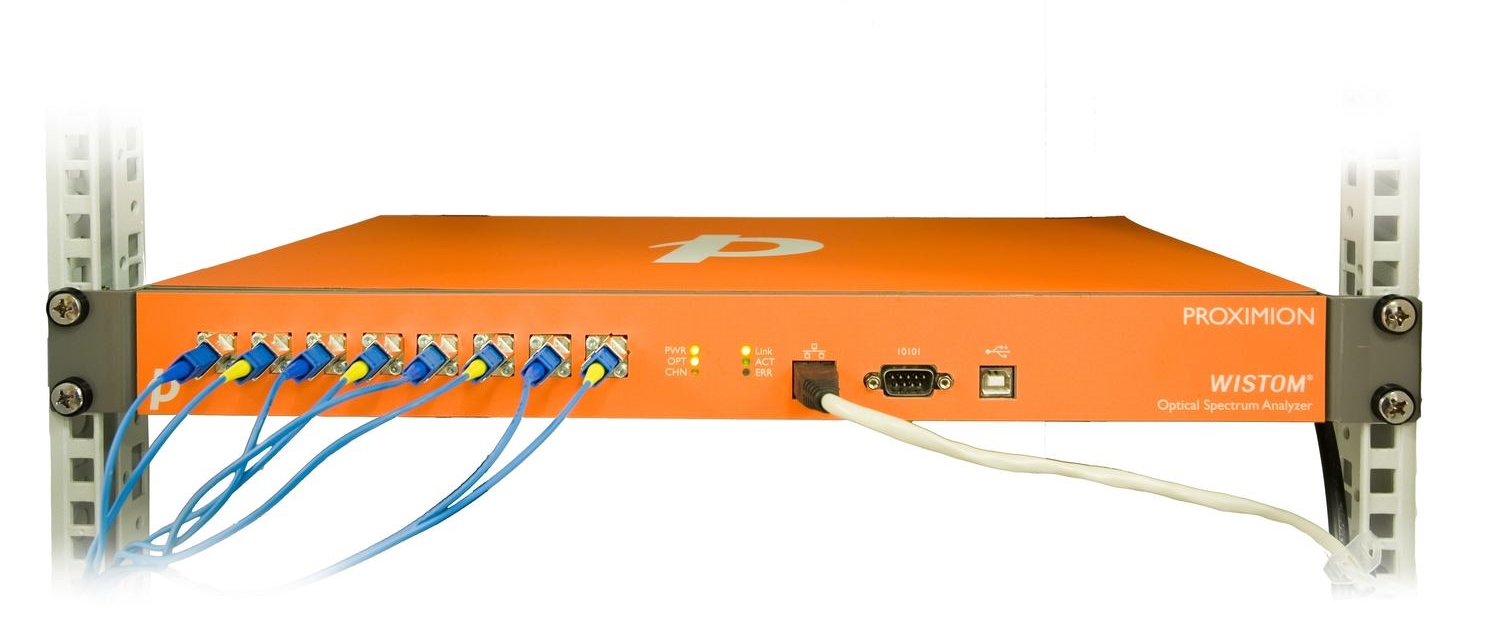

The fastest optical spectrum analyzer on the market. Scans a full spectrum in 40 microseconds

Integrated optical switch provides monitoring of up to 2048 channels in sixteen fibers. Powerful embedded software that performs intelligent analysis of the measured data

Monitors any DWDM system; regardless of system vendor, channel spacing, modulation technology, data format or bit rate


Provides accurate OPM functionality with 100Gbit/s, 40Gbit/s, 10Gbit/s and 2.5Gbit/s in the same link





One Unit Any Application

WISTOM can be applied to complex channel plans containing line grids with variable spacing at both low and very high dense channels. The continuous full-spectrum, real-time channel monitoring of WISTOM ensures an effective scanning of all relevant optical parameters. Thus, the WISTOM unit acts as an all-in-one monitor of any WDM optical network.

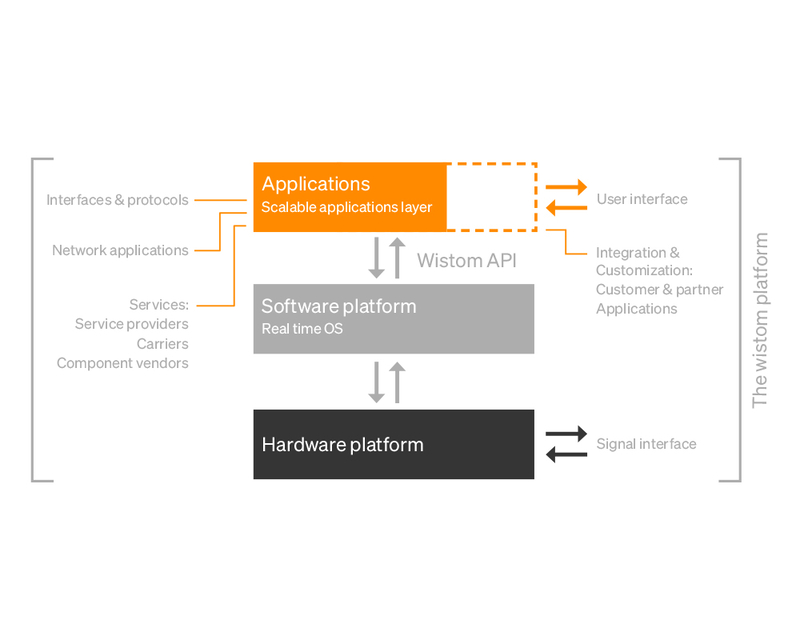

overvoew of the wistom platform

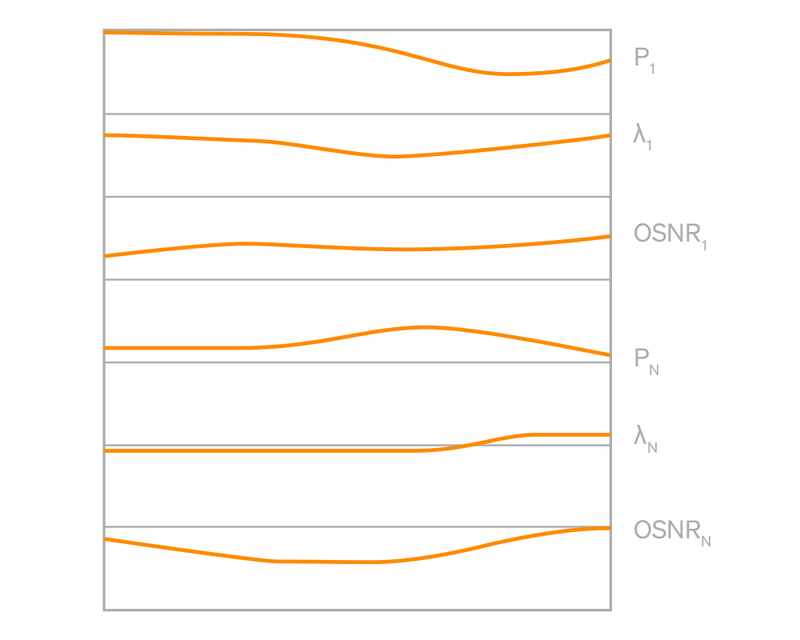

Performance degradation monitoring. Wistom tracking the drift of the optical network.

Performance degradation monitoring. Wistom tracking the drift of the optical network.

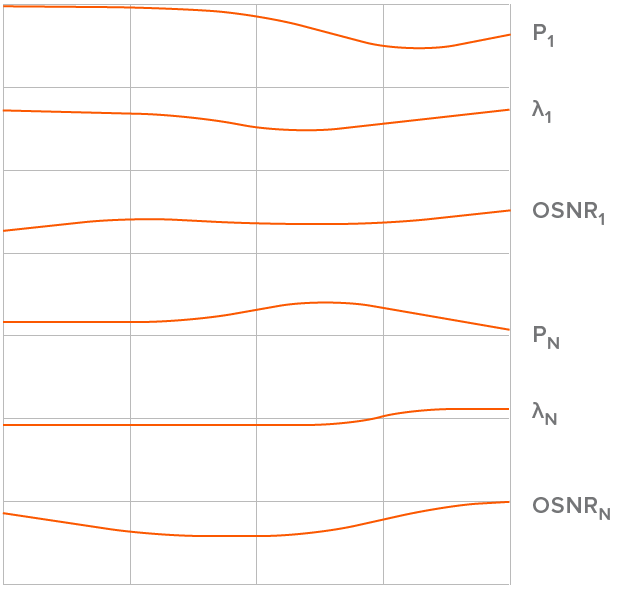

Drift Tracking

The increasing complexity in optical communication networks makes it more important to monitor parameter drift. Selected channel quality parameters can be sampled and recorded over time. Thereby, degradations become evident and balancing countermeasures can be applied. Also, performance data can be used to anticipate requirements for network growth/augmentation.




Powerful Software Packages

the wistom network management system



By distributing WISTOM units in critical nodes in your DWDM network and connecting them to WISTOM Network Monitoring System (WNMS) you will get instant access to the optical layer with one software. Key parameters for each monitored channel as well as historical information is easily accessible through an optimized interface.



wistom software development kit



The WISTOM Software Development Kit (SDK) simplifies your integration of one or several WISTOM units to a customized software application.





The WISTOM Principle

technology description of the wistom principle
  1. A small portion of the signal enters into WISTOM
  2. Signal passes through circulator towards a broadband FBG
  3. FBG is reflecting all wavelengths within C-band
  4. C-band signal enters circulator again
  5. Light is directed towards a scanning filter
  6. An actuator creates an acoustic pulse that locally changes refractive index of the FBG
  7. A part of the signal is reflected in the chirped FBG
  8. The part of the signal that is not reflected is transmitted towards the optical detector
  9. The optical detector receives and stores the data
